A fully customizable microarray to interrogate virtually any target across any species to fit your unique study needs.
Sample throughput
Number of samples
Number of markers

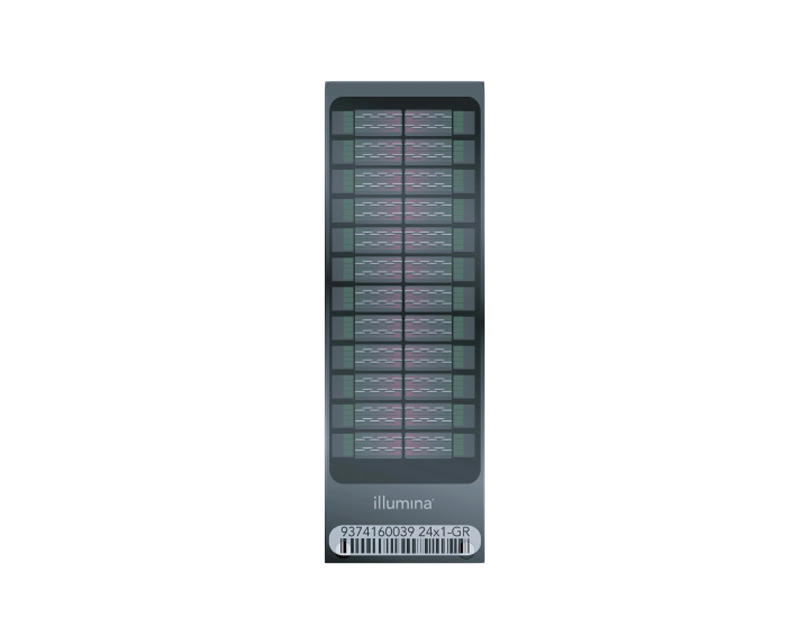

The Infinium HTS iSelect Custom BeadChips provide access to virtually any marker in the genome to fit unique research needs.
Custom genotyping panels of 3072 to 700K markers per sample can be created in a 24-sample format. Interrogate virtually any target (eg, SNPs, CNVs, indels) to enable focused genotyping applications tailored to specific projects.
Increase efficiency and cost effectiveness of custom studies by combining existing marker sets with new, unique content with the Infinium iSelect+ option.
Process data directly in Illumina GenomeStudio software to provide streamlined genotype calling, analysis, and reporting.
| Assay type | Infinium HTS |
|---|---|
| Automation capability | Automated array loader, Liquid handling robot(s) |
| Description | The Infinium HTS iSelect Custom BeadChip enables researchers to design a fully customized high-throughput screening panel to interrogate virtually any marker in the genome for virtually any species to fit their research needs. |
| Input quantity | 200 ng DNA |
| Instruments | iScan System |
| Method | Custom array |
| Nucleic acid type | DNA |
| Number of markers | 700K custom markers max |
| Number of samples | 24 samples per array |
| Sample throughput | 5760 samples per week max (with 2 iScan systems, 1 AutoLoader 2x, and 2 Tecan robots over an 8-hour day) |
| Specialized sample types | FFPE tissue |
| Species category | Drosophila, Any species, Shrimp, Mammalian, Tomato, Bovine, Mouse, Canine, Yeast, Rice, Zebrafish, Ovine, Hamster, Chicken, Porcine, Human, Rat, Equine, Plant, Virus, Maize, Nematode, Bacteria, Soybean |
| Technology | Microarray |
| Variant class | Single nucleotide polymorphisms (SNPs), Germline variants, Structural variants, Insertions-deletions (indels), Copy number variants (CNVs) |
Infinium Starter Kit: Select a kit size with the number of samples run at a time. Each kit is processed as a single batch and cannot be divided across multiple experiments. Order multiple small kits if you are processing several low-throughput batches.
iScan System
Optional hardware to maximize sample throughput and streamline processing of the Infinium Assay:
AutoLoader (Single or Dual): Robot and accessories to automate iScan loading
Clarity LIMS
Infinium genotyping automation pre/post-amplification Tecan option: Robotic system for automated processing in pre/post-PCR area.
The Infinium HTS iSelect Custom BeadChip supports up to 700K custom targets, enabling a wide range of genotyping experimental designs, including fine mapping and validation studies, association studies, genomic scans, and marker-assisted breeding for any species.
Infinium iSelect Custom Beadchip
Custom array and sequencing solutions offer flexible content for any study, from targeted genotyping to genome-wide association studies.
Large-scale genotyping with microarrays can identify variants associated with disease risk in large cohorts or populations.
| Infinium HTS iSelect Custom Beadchips | Infinium XT iSelect-96 Kit | ||||
|---|---|---|---|---|---|
| Assay type | Infinium HTS | Infinium XT | |||
| Automation capability | Automated array loader, Liquid handling robot(s) | Automated array loader, Liquid handling robot(s) | |||
| Description | The Infinium HTS iSelect Custom BeadChip enables researchers to design a fully customized high-throughput screening panel to interrogate virtually any marker in the genome for virtually any species to fit their research needs. | The Infinium XT iSelect-96 Kit enables cost-effective genotyping for large-scale studies on virtually any species with a throughput range of 50K to > 1M samples/year. The BeadChip supports up to 100K nonhuman and 50K human markers with prevalidated or novel custom content. | |||
| Input quantity | 200 ng DNA | 200 ng DNA | |||
| Instruments | iScan System | iScan System | |||
| Method | Custom array | High-throughput genotyping array, Custom array | |||
| Nucleic acid type | DNA | DNA | |||
| Number of markers | 700K custom markers max | 50K custom markers | |||
| Number of samples | 24 samples per array | 96 samples per array | |||
| Sample throughput | 5760 samples per week max (with 2 iScan systems, 1 AutoLoader 2x, and 2 Tecan robots over an 8-hour day) | > 1M samples/year max. Range: 100K to > 1M samples/year. | |||
| Specialized sample types | FFPE tissue | ||||
| Species category | Drosophila, Any species, Shrimp, Mammalian, Tomato, Bovine, Mouse, Canine, Yeast, Rice, Zebrafish, Ovine, Hamster, Chicken, Porcine, Human, Rat, Equine, Plant, Virus, Maize, Nematode, Bacteria, Soybean | Drosophila, Any species, Shrimp, Mammalian, Tomato, Bovine, Mouse, Canine, Yeast, Rice, Zebrafish, Ovine, Hamster, Chicken, Porcine, Human, Rat, Equine, Plant, Virus, Maize, Nematode, Bacteria, Soybean | |||
| Technology | Microarray | Microarray | |||
| Variant class | Single nucleotide polymorphisms (SNPs), Germline variants, Structural variants, Insertions-deletions (indels), Copy number variants (CNVs) | Single nucleotide polymorphisms (SNPs), Germline variants, Insertions-deletions (indels) |
Library Prep and Array Kit Selector
Find the right sequencing library preparation kit or microarray for your needs. Filter by method, species, and more. Compare, share, and order kits.

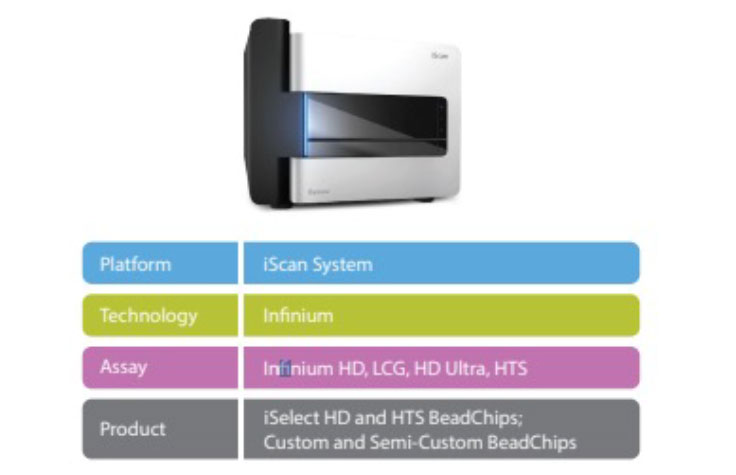

The Illumina iScan System is compatible with all current genotyping array products offered by Illumina, supporting a wide range of applications.
| Custom Infinium iSelect | Semi-Custom Infinium | |
|---|---|---|
| Number of markers assayed | - 3K - 700K | Up to 4.8 milliona |
| Format | 24 samplesb | Variable |
| Sample throughput | Up to 5760 samples/weekc | Up to 5760 samples/weekc |
| FFFPE compatible | • | • |
| LIMS support | • | • |
| Automation support | • | • |
a. 4.3M markers base content, 500K additional custom content.
b. Dependent on the number of custom markers selected.
c. Assuming 2 iScan systems, 1 Autoloader 2x, and 2 Tecan robots over an 8-hr day.
Abbreviations: FFFPE, formalin-fixed, paraffin-embedded; LIMS, Laboratory Information Management System
Infinium HTS iSelect-24 Kit (48 Samples, up to 700K)
15042264
The Infinium HTS iSelect-24 48-Sample Kit contains 2 custom BeadChips designed to interrogate up to 700,000 custom targets and reagents to process 48 DNA samples through the Infinium HTS workflow.
Infinium HTS iSelect-24 Kit (288 Samples, up to 700K)
15042265
The Infinium HTS iSelect-24 288-Sample Kit contains 12 custom BeadChips designed to interrogate up to 700,000 custom targets and reagents to process 288 DNA samples through the Infinium HTS workflow.
Infinium HTS iSelect-24 Kit (1152 Samples, up to 700K)
15042266
The Infinium HTS iSelect-24 1152-Sample Kit contains 48 custom BeadChips designed to interrogate up to 700,000 custom targets and reagents to process 1152 DNA samples through the Infinium HTS workflow.
iSelect® 8x1 LCG Custom DNA Analysis Kit (48 samples)
WG-408-1001
Each 8x1 Infinium iSelect LCG Custom Kit contains reagents for processing 48 DNA samples and analyzing up to 2.5M loci.
List Price:
Discounts:
iSelect® 8x1 LCG Custom DNA Analysis Kit (96 samples)
WG-408-1002
Each 8x1 Infinium iSelect LCG Custom Kit contains reagents for processing 96 DNA samples and analyzing up to 2.5M loci.
List Price:
Discounts:
iSelect® 8x1 LCG Custom DNA Analysis Kit (384 samples)
WG-408-1003
Each 8x1 Infinium iSelect LCG Custom Kit contains reagents for processing 384 DNA samples and analyzing up to 2.5M loci.
List Price:
Discounts:
AutoLoader 2.x, Single-Scanner Configuration (110/220 V)
SY-202-1001
Includes one AutoLoader 2.x robot, five hotels, 10 black carriers, one AutoLoader 2.x baseplate, one iScan baseplate, installation, Illumina AutoLoader software, and one-year standard warranty to support one iScan System. iScan System sold separately.
List Price:
Discounts:
AutoLoader 2.x, Dual-Scanner Configuration (110/220 V)
SY-202-1002
This kit supports customers who want to maximize utilization of their iScans and sample throughput capacity by enabling automated loading of two iScans. It includes one AutoLoader robot, five hotels, twenty carriers, baseplates, installation and the Illumina AutoLoader software. iScan sold separately. One-year standard warranty.
List Price:
Discounts:
Infinium Automated Pipetting System with IAC (110V)
SC-30-403
This package supports customers who want to automate their Infinium processing and integrate a LIMS system (sold separately). It includes a LIMS-ready Tecan Freedom EVO 150cm liquid handler with RoMA ARM equipped to run the Pre-AMP OR Post-AMP Infinium Assay protocols, robotic accessories and Robot Control Software. LIMS server, software and license sold separately.
List Price:
Discounts:
Infinium Automated Pipetting System with IAC (220V)
SC-30-404
This package supports customers who want to automate their Infinium processing and integrate a LIMS system (sold separately). It includes a LIMS-ready Tecan Freedom EVO 150cm liquid handler with RoMA ARM equipped to run the Pre-AMP OR Post-AMP Infinium Assay protocols, robotic accessories and Robot Control Software. LIMS server, software and license sold separately. NOTE: This does not include the Te-Flow Rack/Water Circulator kit, which is required for the Infinium workflow and must be ordered separately (PN 20028404)
List Price:
Discounts:
Infinium Automation Kit- 8 Tip Tecan Non-LIMS (110V)
SC-30-401
The sale and quoting of this instrument is currently discontinued due to a change in the array platform roadmap that will support future workflows on a RoMa Infinium Automation Pipetting System (Formerly called Tecan) only. We want to make sure that customers will benefit from any new releases without having to purchase a new robot. Please quote product numbers: 11201220 (220V) or 11201238 (110 V) instead. If this presents an issue from a budgeting standpoint please contact the product manager.
Infinium Automation Kit- 8 Tip Tecan Non-LIMS (220V)
SC-30-402
The sale and quoting of this instrument is currently discontinued due to a change in the array platform roadmap that will support future workflows on a RoMa Infinium Automation Pipetting System (Formerly called Tecan) only. We want to make sure that customers will benefit from any new releases without having to purchase a new robot. Please quote product numbers: 11201220 (220V) or 11201238 (110 V) instead. If this presents an issue from a budgeting standpoint please contact the product manager.
Infinium® Assay: An Introduction – Customer Site
20015273
Three-day, hands-on instruction at customer site to familiarize users with the essential steps in the Infinium protocol. Course provides hands-on training in sample and BeadChip preparation, sample scanning using the iScan System, and primary data evaluation and analysis using array analysis software.
Showing of
Product
Qty
Unit Price
Product
Catalog ID
Quantity
Unit price
Creating and ordering custom assays in DesignStudio Microarray Assay Designer is completed in five simple stages:
For more details, refer to this technical note. Online support is available to provide detailed instructions for the design and ordering process.
