To provide greater flexibility in ordering single components for library preparation, we are moving to a modular configuration. Our existing TruSeq DNA PCR-Free Library Prep Kits (Cat. No. FC-121-3001, FC-121-3002, and FC-121-3003) will transition to TruSeq DNA PCR-Free (Cat. No. 20015962 for 24 samples and Cat. No. 20015963 for 96 samples) for library preparation. Index adapters will be sold separately as TruSeq DNA Single Indexes (Cat. No. 20015960 for Set A and Cat. No. 20015961 for Set B) and TruSeq DNA CD (combinatorial dual) Indexes (Cat. No. 20015949 for 96 indexes).

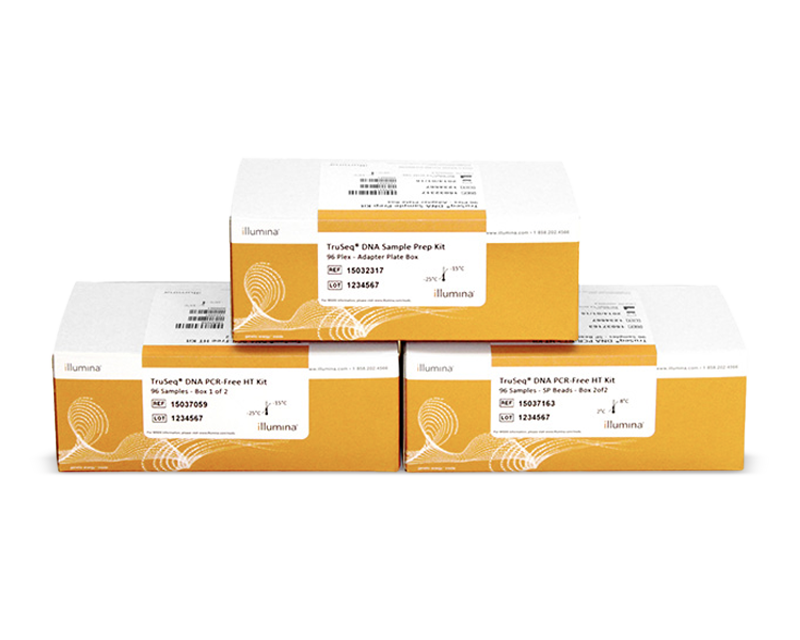

TruSeq DNA PCR-Free

Simple, all-inclusive whole-genome sequencing (WGS) library preparation that provides accurate and comprehensive coverage of complex genomes.Read More...
Select Product(s)
What products do I need?
Library Prep

TruSeq DNA PCR-Free Low Throughput Library Prep Kit (24 samples)

20015962

Price



TruSeq DNA PCR-Free High Throughput Library Prep Kit (96 samples)

20015963

Price



Index Adapters

TruSeq DNA Single Indexes Set A (12 Indexes, 24 Samples)

20015960

Price



TruSeq DNA Single Indexes Set B (12 Indexes, 24 Samples)

20015961

Price



TruSeq DNA CD Indexes (96 Indexes, 96 Samples)

20015949

Price



IDT for Illumina – TruSeq DNA UD Indexes (24 Indexes, 96 Samples)

20020590

Price



IDT for Illumina – TruSeq DNA UD Indexes (96 Indexes, 96 Samples)

20022370

Price


Accessory Products

Illumina Free Adapter Blocking Reagent (12 reactions)

20024144

Price



Illumina Free Adapter Blocking Reagent (48 reactions)

20024145

Price



Product Highlights

TruSeq DNA PCR-Free provides simple, all-inclusive library preparation for whole-genome sequencing applications. Researchers can sequence a wide variety of organisms, from small genomes such as bacteria to human whole genomes. The workflows offer:

  • Shortened gel-free workflows that remove the need for PCR
  • Ability to sequence challenging regions
  • Excellent coverage quality for deep insight into the genome
Sequence challenging regions

Within our whole-genome sequencing workflows, TruSeq DNA PCR-Free offers superior coverage of areas that are traditionally difficult to sequence, such as GC-rich regions, promoters, and repetitive content.

The workflows are tunable to a variety of read lengths and are supported on all Illumina sequencing instruments. This permits the researcher to tailor each run to the needs of the experiment.

Gain deep insight into the genome

PCR-free means reduced library bias and gaps. The result is high data quality and optimal variant detection across the genome. Excellent genome coverage quality means your results have few gaps and good coverage of GC-rich regions.

Save time with a PCR-free protocol

Removing PCR saves time and removes genomic coverage bias associated with PCR steps. Bead-based size selection shortens the workflow. In tandem with Illumina sequencing systems, TruSeq DNA PCR-Free provides a range of enhancements to a widely adopted library preparation workflow.

Access flexible throughput options
  • TruSeq DNA PCR-Free with Single Indexes supports 24-sample manual processing for low-throughput (LT) studies.
  • TruSeq DNA PCR-Free with 96 CD Indexes supports 96-sample processing for high-throughput (HT) studies, and can be automated on liquid-handling robots (or processed manually).
  • IDT for Illumina Unique Dual (UD) Indexes (24 or 96) offer increased plexity that enables accurate assignment of reads and efficient use of the flow cell.

Find a list of automation vendors with robotic systems that support the HT workflows

Specifications

Project Recommendations

Instrument Recommended Number of Samples Read Length
NextSeq 550 System 1 sample per run (based on 30× coverage of a human genome)  350 bp insert: ≤ 2 × 100 bp
550 bp insert: ≤ 2 × 150 bp
HiSeq 2500 System 2–10 samples per run (dual flow cell; based on 30× coverage of a human genome) 350 bp insert: ≤ 2 × 100 bp (rapid run)
550 bp insert: ≤ 2 × 250 bp (rapid run)
350 bp insert: ≤ 2 × 100 bp (high output)
550 bp insert: ≤ 2 × 125 bp (high output)
NovaSeq 6000 System Samples per run (dual flow cell): S1: 8, S2: 16, S4: 48 (based on 30× coverage of a human genome)  350 bp insert: ≤ 2 × 150 bp
550 bp insert: ≤ 2 × 150 bp

Product Comparison

TruSeq DNA PCR-Free Nextera DNA Flex Library Prep Kit TruSeq DNA Nano
Assay Time 5 hours total assay time ~3-4 hours (from DNA extraction to normalized library) ~6 hours total assay time
Automation Capability Liquid Handling Robots Liquid Handling Robots Liquid Handling Robots
Description A simple, all-inclusive PCR-free prep for whole-genome sequencing studies with the ability to sequence through challenging regions of the genome. A fast, flexible workflow for a wide range of research applications and sample types, from human to microbial whole-genome sequencing and more. A low-input research method that delivers high genome coverage quality and reduced bias.
Hands-On Time 4 hours 1-1.5 hours ~4 hours
Input Quantity 1 ug DNA Small genomes (e.g. microbial): 1-500 ng DNA. Large genomes (e.g. human): 100-500 ng DNA. 100 ng genomic DNA
Mechanism of Action Mechanical DNA fragmentation and adapter ligation. Workflow is PCR-free and gel-free. Bead-linked transposome Mechanical DNA fragmentation and adapter ligation. Workflow uses reduced-bias PCR and is gel-free.
Method Genotyping by Sequencing , Shotgun Sequencing , Whole-Genome Sequencing Amplicon Sequencing , De Novo Sequencing , Shotgun Sequencing , Whole-Genome Sequencing Genotyping by Sequencing , Shotgun Sequencing , Whole-Genome Sequencing
Multiplexing Up to 24 single, 96 combinatorial (CD) dual, 24 unique dual and 96 unique dual (UD) combinations (available soon) Up to 96 available indexes Up to 24 single, 96 combinatorial (CD) dual, 24 unique dual and 96 unique dual (UD) combinations (available soon)
Specialized Sample Types Not FFPE-Compatible Blood, Not FFPE-Compatible, Saliva Low-Input Samples, Not FFPE-Compatible
Species Category Human, Mammalian, Mouse, Other, Plant, Rat Any Species, Bacteria, Drosophila, Human, Mammalian, Mouse, Nematode, Plant, Rat, Virus, Yeast, Zebrafish Human, Mammalian, Mouse, Other, Plant, Rat
Species Details Compatible with most large DNA genomes. Compatible with any species Compatible with most large DNA genomes.
Target Insert Size 350 bp or 550 bp ~500 bp 350 bp or 550 bp

Method-Specific Workflow Example



Customer Stories

Feline Social Media Star Gets Sequenced

Researchers from the Max Planck Institute and the University of Pennsylvania crowdfunded the genome sequencing of Lil Bub, using the NextSeq 500 System to uncover the genetic causes of the cat’s rare diseases.

Read More
Single-Cell Transcriptome Sequencing, the Internet, and Memory

TGen researchers are combining crowd-sourcing and single-cell RNA sequencing on HiSeq Systems to adequately power genetic studies of memory.

Read More

Product Comparison

Comparison of TruSeq Library Preparation Kits
Product TruSeq DNA PCR-Free TruSeq DNA Nano
Product versions Low-Throughput (LT) and High-Throughput (HT) LT and HT
Description Comprehensive genomic coverage with reduced library bias and coverage gaps (compared to PCR-based options) Based upon widely adopted TruSeq library prep, with lower input and improved data quality (compared to prior TruSeq kit versions)
Automation options LT kits: Manual workflow
HT kits: Automation-friendly; manual protocols also available
LT kits: Manual workflow
HT kits: Automation-friendly; manual protocols also available
Input quantity 1–2 μg 100–200 ng
Includes PCR No Yes
Assay time ~5 hours 5.5 hours
Hands-on time ~4 hours 4 hours
Target insert size 350 bp or 550 bp 350 bp or 550 bp
Gel-free Yes Yes
Number of samples supported 24 (LT) or 96 (HT) samples 24 (LT) or 96 (HT) samples
Size-selection beads Included Included
Applications Whole-genome sequencing applications, including whole-genome resequencing, de novo assembly, and metagenomics studies
Sample multiplexing Up to 24 single, 96 combinatorial (CD) dual, 24 unique dual and 96 unique dual (UD) combinations
Compatible Illumina sequencers MiniSeq, MiSeq, NextSeq, HiSeq, NovaSeq, HiSeq X, and HiScanSQ systems
